Performance Data

The LiMAx® test and its algorithm have been established in independent studies covering around 15,000 individual procedures.

Specificity of the LiMAx® test

The specificity of metabolism of hepatic 13C-methacetin was tested in the anhepatic phase during liver transplantation. There was no significant increase in delta-over-baseline (DOB) during the anhepatic phase, with negligible metabolization
(figure 1).

Figure 1: Specificity of the LiMAx test. Median range of all data points during the anhepatic phase was 0.18 (-0.6 to 1.2) DOB in n=5 patients
Figure 1: Specificity of the LiMAx test. Median range of all data points during the anhepatic phase was 0.18 (-0.6 to 1.2) DOB in n=5 patients

Validation of the LiMAx® test

In a correlation analysis, linear correlations between the residual liver volume and the residual LiMAx were calculated
(figures 2 and 3).

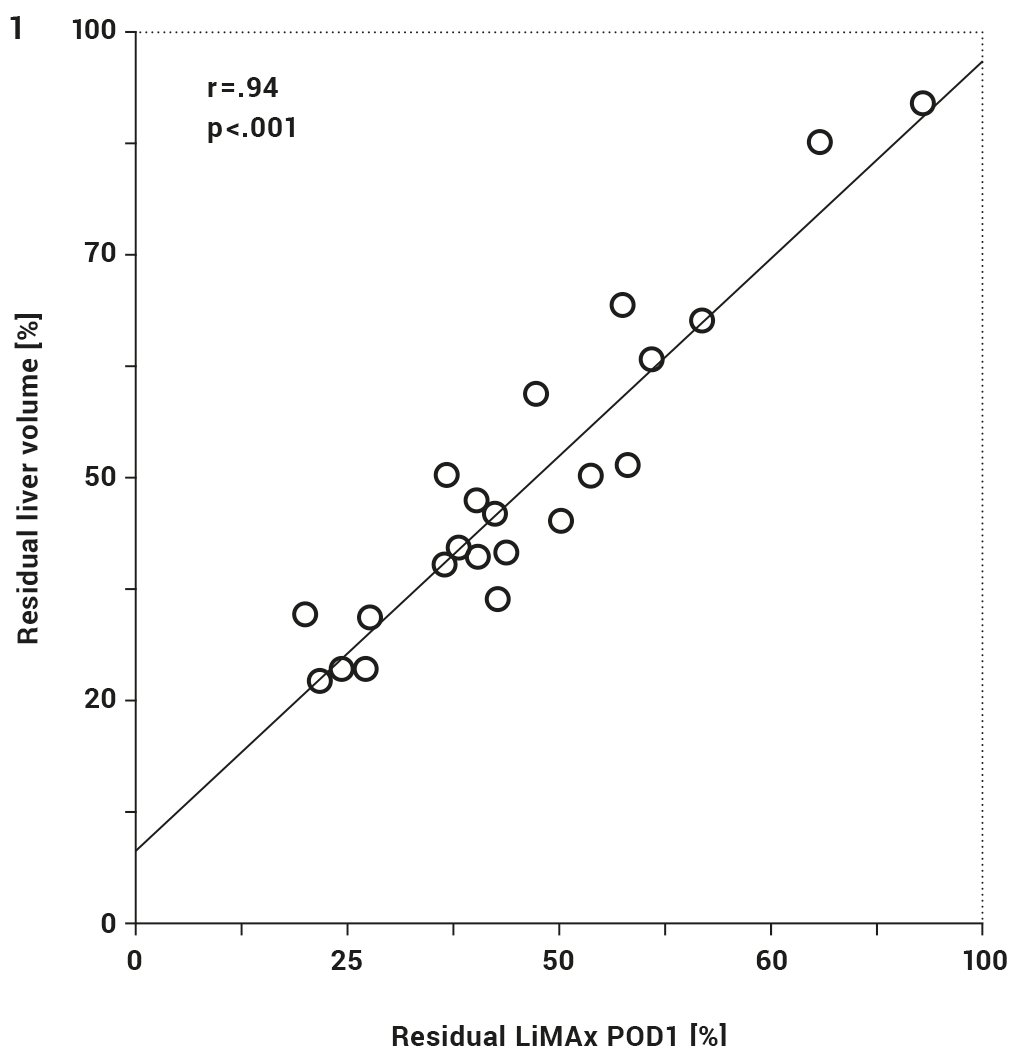

Figure 2: Linear correlation between residual liver volume and residual LiMAx score. LiMAx at POD1 divided by LiMAx preoperatively times 100; r =0.94; P<0.001; POD= postoperative day.
Figure 2: Linear correlation between residual liver volume and residual LiMAx score. LiMAx at POD1 divided by LiMAx preoperatively times 100; r =0.94; P<0.001; POD= postoperative day.
Figure 3: Linear correlation of predicted and measured LiMAx at POD1. Predicted LiMAx has been calculated from preoperative volume/function analysis.
Figure 3: Linear correlation of predicted and measured LiMAx at POD1. Predicted LiMAx has been calculated from preoperative volume/function analysis.

Predictive value of the LiMAx® test

The multivariate analysis yielded LiMAx as the only predictor for postoperative liver failure (PLF) as well as for mortality after hepatectomy (table 1). The critical point for PLF was identified as postoperative LiMAx value < 85 μg/kg/h. Normal values from healthy volunteers were determined as LiMAx > 315 μg/kg/h.

After hepatectomy the LiMAx test allowed the early diagnosis of postoperative liver failure with better efficacy than other relevant laboratory markers.

Consistency of the LiMAx® cut-off

The normal range of the LiMAx value was found to be 430 ± 86 μg/kg/h at a cut-off at 315 μg/kg/h. Repetition of replicate LiMAx testing was 0.85 in healthy patients (95% CI, 0.69-0.93).





References:
Stockmann, M. et al. Prediction of postoperative outcome after hepatectomy with a new bedside test for maximal liver function capacity. Ann. Surg. 250, 119–125 (2009)
Jara M. et al. Reliable assessment of liver function using LiMAx. J of Surgical Research 193, 184-189 (2015)

Accuracy of the predictive value of LiMAx at postoperative days (POD) 1-5

Table 1: ROC analysis. Predictive value of LiMAx at POD 1–5. *Area under receiver operator characteristic curve (AUROC) with 95% confidence interval in parentheses; **LiMAx (μg/kg/h) with maximal value of sensitivity and specificity.
Table 1: ROC analysis. *Area under receiver operator characteristic curve (AUROC) with 95% confidence interval in parentheses; ** LiMAx (μg/kg/h) with maximal value of sensitivity and specificity.
